Industrial UV LED Curing Solutions
High-performance UV LED curing systems engineered for reliable, efficient production.
Air Cooled 1kw UV LED Curing Light 395nm UV LED Lamp for Silk Screen Bottle Printing Curing System Light Source
The 1000W Air Cooled UV LED Curing Light is a high-intensity UV curing system designed for screen printing, bottle printing, label printing, ink curing, coating curing, and industrial UV applications. Featuring 395nm wavelength, efficient air cooling, and up to 20W/cm² UV intensity, it delivers fast curing speed, low energy consumption, and long service life.

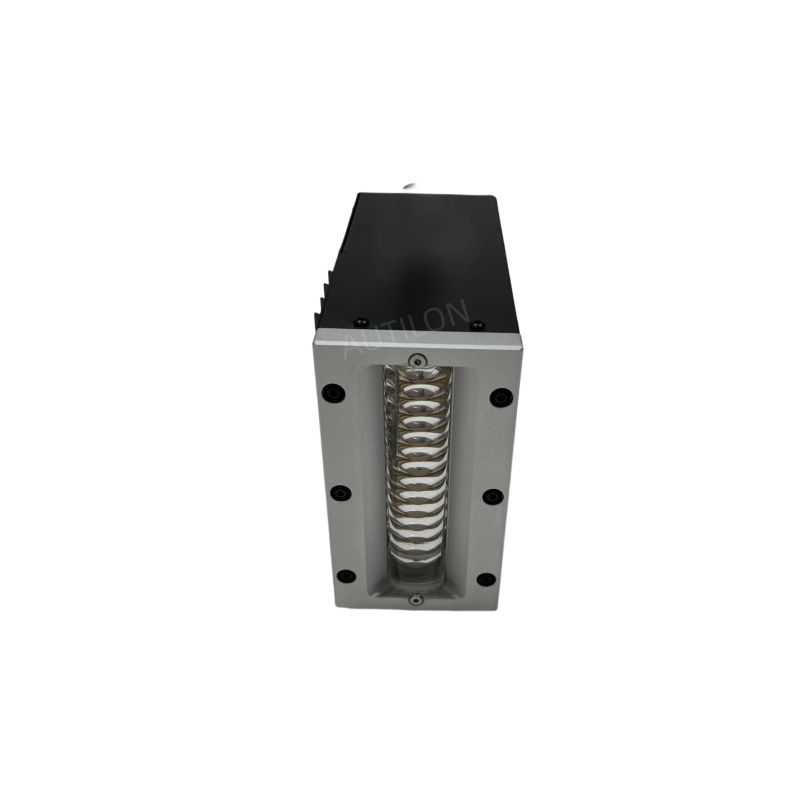

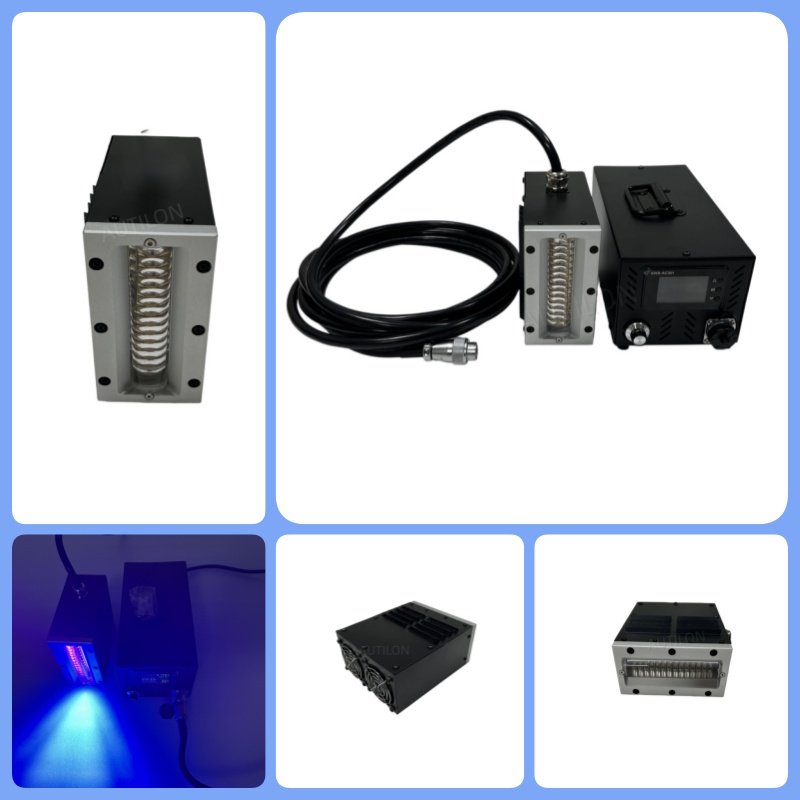

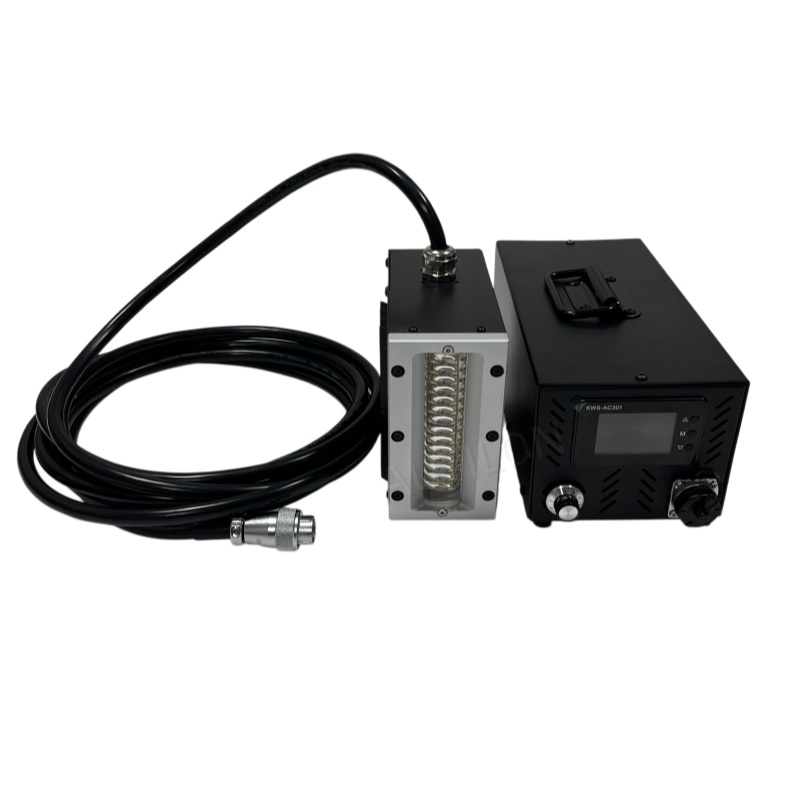

1000W Air Cooled UV LED Curing System
The ATL-UV1000A-F UV LED curing lamp is engineered for industrial printing and curing applications requiring high UV intensity and stable performance. Equipped with advanced UV LED technology, this air-cooled curing system provides instant start-up, energy efficiency, and consistent curing results.
Compared with traditional mercury lamps, the UV LED curing light offers lower operating costs, longer lifespan, environmentally friendly operation, and minimal maintenance requirements.
Suitable for:
✅ Silk Screen Printing
✅ Bottle Printing
✅ UV Ink Curing
✅ Label Printing
✅ Packaging Printing
✅ Coating Curing
✅ Electronics Manufacturing
✅ Industrial UV Adhesive Curing
| Model No. | ATL-UV1000A-F | Input voltage | AC110V / AC220V |
| Wavelength | 365/385/395/405nm for optional | Life time | 15,000-20,000hrs |
| UV intensity | 15-20W/CM2 | Casing material | Aluminum |
| Emitting window size | 200×25mm | Operating ambient temperature | 0ºC-35ºC |
| Cooling method | Air Cooling | Emitting distance | 10-20mm |
| LED lamp size | L278*W120*H85mm | Irradiation time | Depend on actual use |
Key Features
High UV Intensity Output
Provides up to 15-20W/cm² UV intensity for fast and efficient curing performance.
Multiple Wavelength Options
Available wavelengths:
- 365nm
- 385nm
- 395nm
- 405nm
Suitable for different UV inks, coatings, and adhesive applications.
Efficient Air Cooling Design
Built-in air cooling system ensures stable operation while reducing maintenance costs.
Long Service Life
UV LED lifespan reaches 15,000–20,000 hours, significantly reducing replacement frequency compared with traditional UV lamps.
Energy Saving
Consumes less power while delivering high curing efficiency, helping reduce production costs.
Instant On/Off
No warm-up time required. Full UV output is available immediately after startup.
Environmentally Friendly
Mercury-free UV curing solution with low heat generation and reduced environmental impact.
Technical Specifications
| Item | Specification |
|---|---|
| Model | ATL-UV1000A-F |
| Input Voltage | AC110V / AC220V |
| Wavelength | 365 / 385 / 395 / 405nm |
| UV Intensity | 15-20W/cm² |
| Cooling Method | Air Cooling |
| Emitting Window Size | 200 × 25mm |
| Emitting Distance | 10-20mm |
| Operating Temperature | 0°C – 35°C |
| LED Lamp Size | 278 × 120 × 85mm |
| Housing Material | Aluminum |
| Lifespan | 15,000 – 20,000 Hours |
Benefits of UV LED Curing Technology
- Faster production speed
- Lower energy consumption
- Reduced maintenance costs
- Stable curing quality
- Longer operating life
- Compact system design
- Eco-friendly and mercury-free
Applications
Screen Printing Industry
Fast curing of UV inks on paper, plastic, glass, and metal surfaces.
Bottle Printing
Ideal for UV curing on plastic bottles, cosmetic packaging, beverage containers, and cylindrical products.
Label & Packaging Printing
Provides consistent curing for labels, cartons, and flexible packaging materials.
Electronics Industry
Suitable for UV adhesive curing, PCB manufacturing, and electronic component assembly.
Why Choose AUTILON UV LED Curing Lights?
- High-intensity UV output
- Industrial-grade reliability
- Multiple wavelength options
- OEM & ODM support
- Fast delivery
- Professional technical support
- Competitive factory-direct pricing
Get a tailored UV LED curing recommendation
Need Help Choosing the Right UV LED Curing System?
Our engineers can help you select the most suitable UV LED solution based on your application.
✔ Wavelength Selection (365nm / 385nm / 395nm / 405nm)
✔ UV Intensity Recommendation
✔ Air Cooling or Water Cooling Options
✔ OEM & Custom Design Support
✔ Fast Technical Response
✔ Factory Direct Pricing
Send us your requirements and receive a professional recommendation within 24 hours.
